X-Frame DR-2T:
Double Digital Detector DR System
ITALRAY X-Frame DR-2T is a dual detector DR System, for Chest, Trauma, and General X-ray applications, from muscle-skeletal to chest and emergency examinations.
X-FRAME DR-2T is composed by a X-ray ceiling tube stand, a multifunctional stand (for examinations in vertical position or on a mobile table) and a radiographic 4-way elevating table.

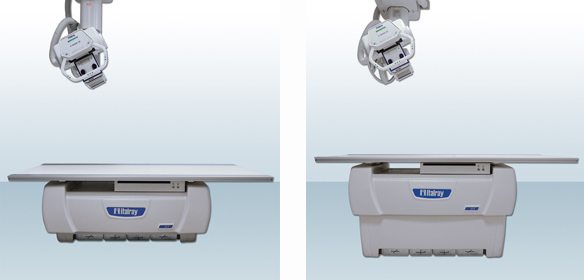

Elevating table: its minimum height facilitates access to patients either on a mobile table or on a wheelchair. Its maximum height allows operators to easily access patients for any re-positioning required by the examination.
Oblique projection on elevating table with automatic centering, automatic collimation, and automatic focus tracking

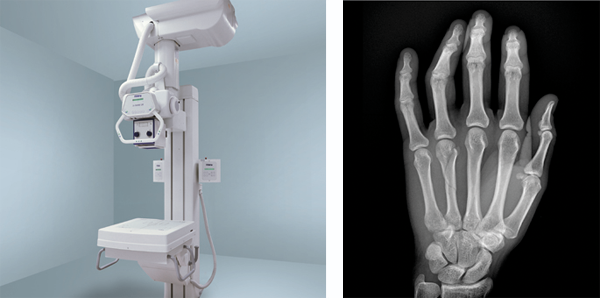

Upper and lower extremities with minimum patient-detector distance

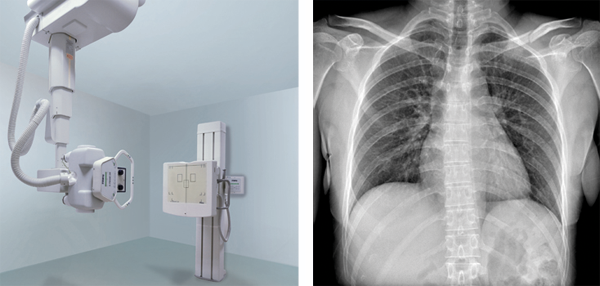

Vertical and Chest examinations with adjustable focal distance and automatic centering and collimation

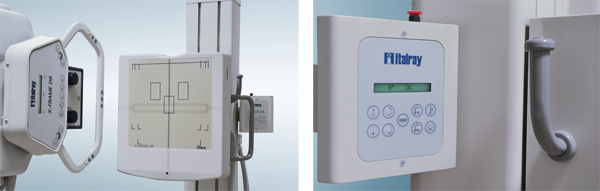

With the optional FULL SYNCHRO package, all system movements are robotic and motorized with predefined working positions. The operator can therefore position the entire system for the selected projection by just pressing the corresponding button on the remote console or on the tube stand console. Furthermore all axes can be individually remote-controlled for fine positioning. Optional FULL SYNCHRO: console with predefined working positions
X-Frame DR can be equipped with the Image Stitching package for Full-Leg and Full-Spine imaging. The Image Stitching package is completely automatic and remote controlled, and the entire procedure can be carried out in less than one minute and with the minimum possible dose.
